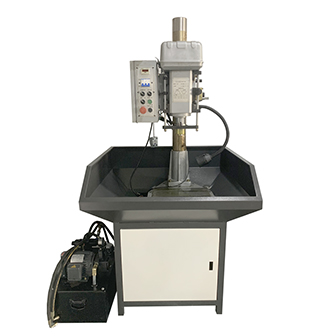

Hydraulic Drilling Machine
● Automatic remove chip special function purchase.
● It adopts oil pressure section feeding and drilling, especially suitable for deep hole, stainless steel and other processing
conditions.

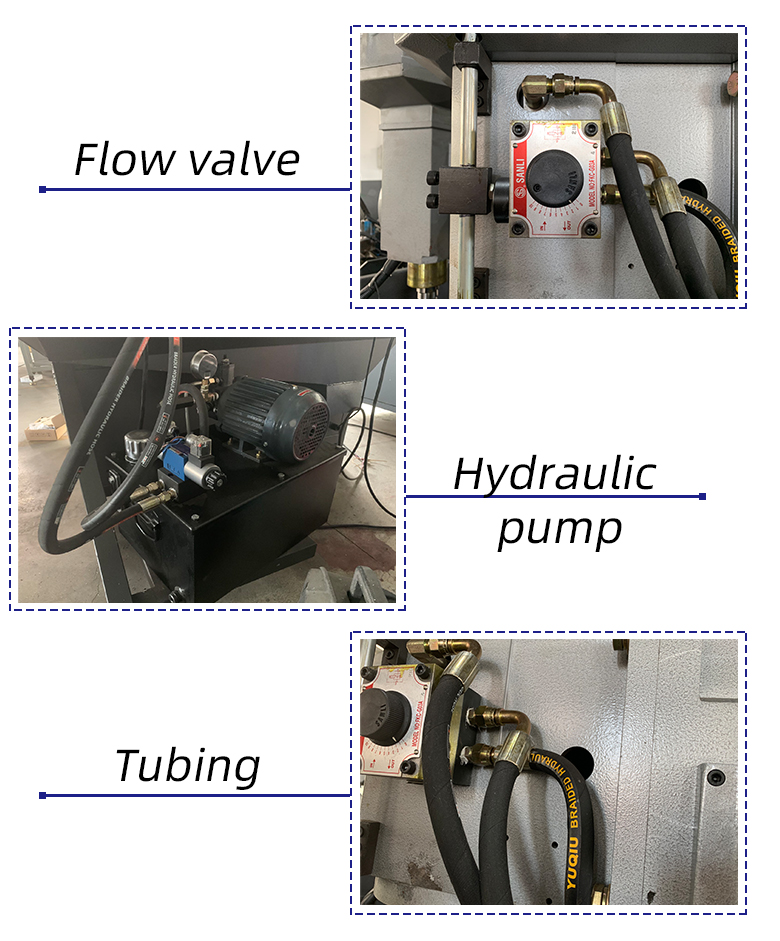

● Machine feed and retreat with hydraulic power, perfect processing stability.
● Cooperate with medium and large multi-spindle head to process according to various conditions to avoid the disadvantage of unstable air pressure and make the product quality more stable.
Details
| Model | DYZ-12(T) | DYZ-20(T) | DYZ-30(T) |
|
Drilling capacity |
20mm | 30mm | 35mm |
|
The spindle taper |
MT2 | MT3 | MT4 |
|
Maximum spindle stroke |
135mm | 140mm | 140mm |
|
Column diameter |
65mm | 75mm | 115mm |
|
Distance between spindle end and mesa |
600mm | 450mm | 700mm |
|
Table size |
370*400mm | 370*400mm | 370*400mm |
|
The motor |
0.75kw/4p | 1.5kw/4p | 2.2kw/6p |
|
Voltage |
380V | 380V | 380V |
|
Frequency |
50HZ | 50HZ | 50HZ |
|
Weight |
350kg/320kg | 430kg/400kg | 550kg/500kg |
|
Volume |
650*300*820mm| | 700*350*820mm |
1000*800*1700mm |
1.Automatic remove chip special function purchase.
2.It adopts oil pressure section feeding and drilling, especially suitable for deep hole, stainless steel and other processing
conditions.
3.Machine feed and retreat with hydraulic power, perfect processing stability.
4.Cooperate with medium and large multi-spindle head to process according to various conditions to avoid the disadvantage of unstable air pressure and make the product quality more stable.
