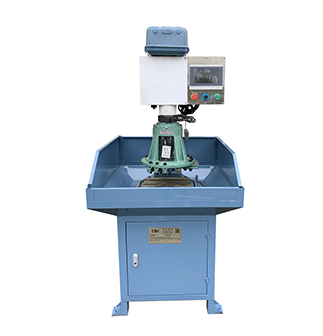

CNC Drilling Machine
● Designed according to CNC machining center,high speed and high efficiency in the working process.
● High-precision ball screw.no gap,high motion accuracy.
● Intelligent control,simple operation,repeatability up to 0.02mm.
● Easy maintenance and save cost.

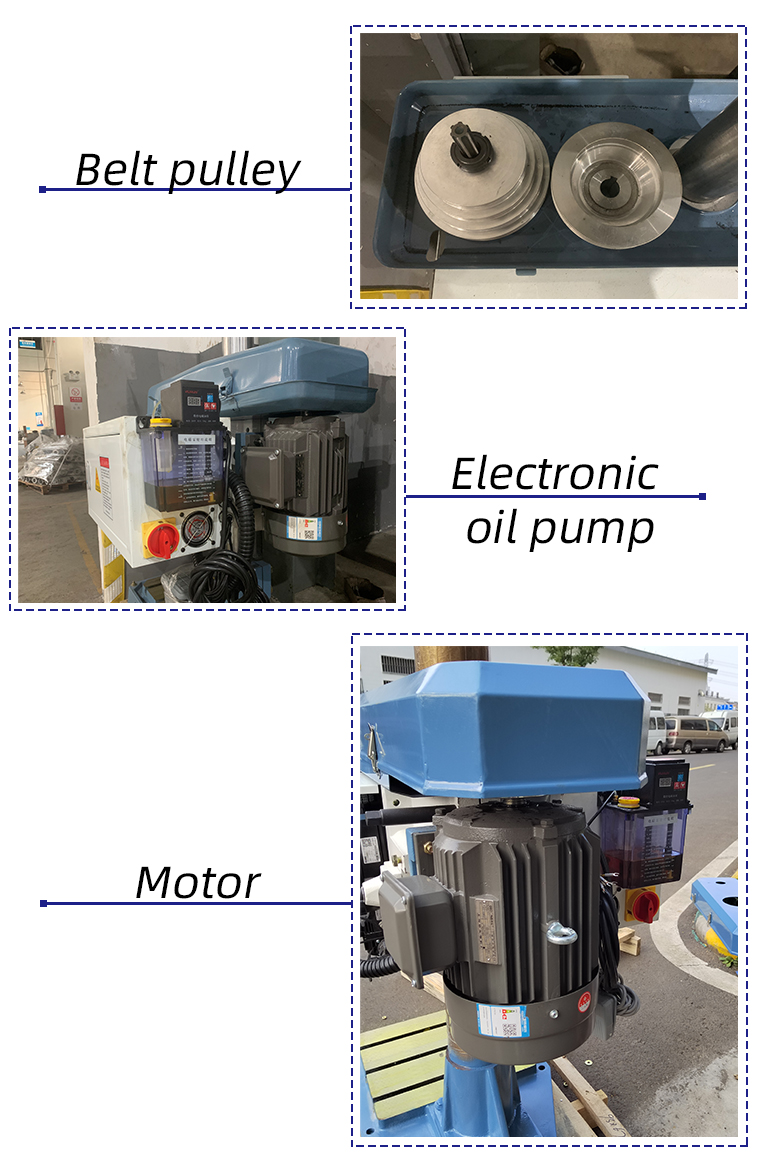

Details
|
Model |
DK18 |
DK23 |
| Drilling capacity | steel φ16mm，The casting φ18mm | steel φ18mm，The castingφ23mm |
| The spindle taper | B16 | MT2 |
| Maximum spindle stroke | 100mm | 120mm |
| Spindle speed | 650/940/1500/1800mm | 650/940/1500/1800mm |
| Distance between spindle end and mesa | 630mm | 600mm |
| Spindle motor power (ordinary) | 0.75KW 4P | 1.5KW 4P |
| Z-axis feed motor power (servo) | 0.75KW | 1KW |
| The spindle diameter | 60mm | 70mm |
| Control system | PLC and touch screen | PLC and touch screen |
| Feed way | Ball screw | Ball screw |
| Weight | 250kg/175kg | 400kg/300kg |
| Volume | 880*610*1000mm | 1000*700*1400mm |
1.Designed according to CNC machining center,high speed and high efficiency in the working process.
2.High-precision ball screw.no gap,high motion accuracy.
3.Intelligent control,simple operation,repeatability up to 0.02mm.
4.Easy maintenance and save cost.
